11 models in the original catalog
Model Edition Series
SW55B–SW300B
5.5–30 kg thrust
Model-series enquiries for civilian model, research and education applications.
Request model details & quotation →Civilian product enquiries
Micro turbojet engines for your application
Share your application and procurement requirements to discuss suitable options. Final specifications, included equipment, documentation and service terms are confirmed for the configuration being quoted.
Discuss micro turbines requirements ↗Product catalog
Explore the engine series.
Compare the series references below, then request the current datasheet for the model you need.
8 models in the original catalog

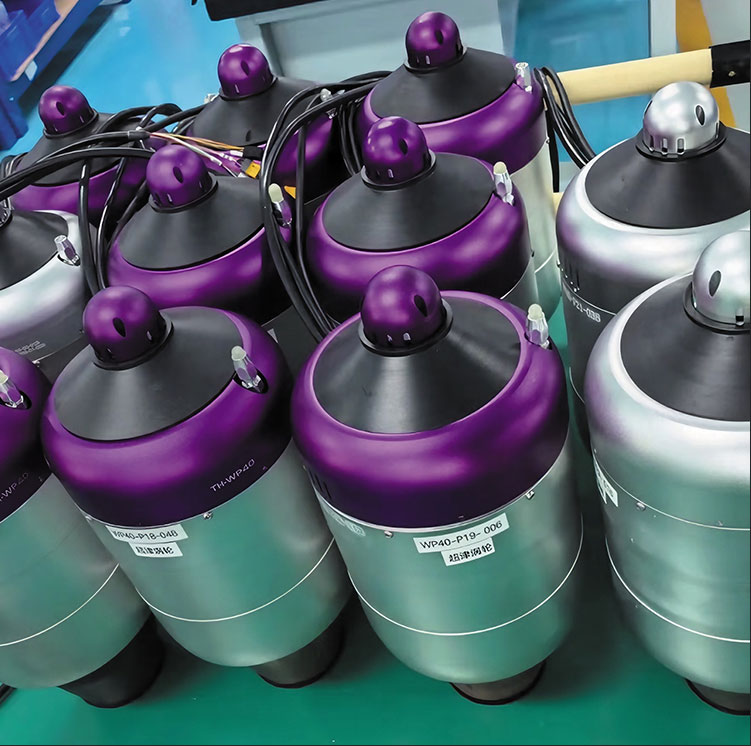

Professional Edition
SW220Pro–SW1600Pro
22–160 kg thrust
Request the current datasheet and supply scope for the particular model you are considering.
Request model details & quotation →
2 model references

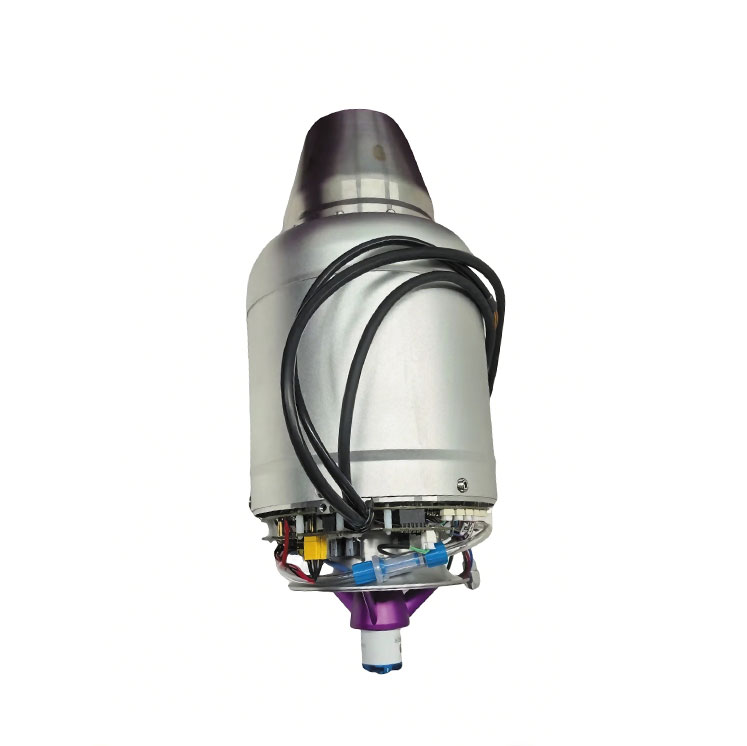

Professional Quick-Start
SW300Pro-K / SW400Pro-K
30–45 seconds catalog start time
Ask for model-specific start conditions, included equipment and the applicable technical documentation.
Request model details & quotation →
Integrated configuration reference
Professional Integrated
SW800Pro-Y
Scope confirmed with your quotation
Discuss your civilian project requirements and confirm the components, documentation and services included.
Request model details & quotation →Photos are from our original product gallery and are not a model-by-model identification guide. Model counts, ranges and figures are original catalog references; current availability and the proposed configuration are confirmed during enquiry. Thrust retains the original catalog’s “kg” notation; request the confirmed force unit and test conditions with your datasheet.
Technical specifications
Catalog specification ranges.
These figures span different models. The endpoints do not describe one engine and should not be combined into a single specification.
| Parameter | Catalog value / range |
|---|---|
| Maximum rotational speed | 50,000–170,000 rpm |
| Idle rotational speed | 15,000–60,000 rpm |
| Start time | 30–90 seconds |
| Weight | 520 g–17 kg |
| Diameter | 69.5–258 mm |
| Length | 170–542 mm |
| Maximum exhaust temperature | 750 °C |
| Fuel specification | Kerosene + 5% oil |
| Maintenance interval | 25 hours |
| ECU version | V3–V7, model dependent |
| Control components | Brushless pump; FESTO valves |
Request the current datasheet, dimensional drawing, included equipment and operating manual for the exact model. Fuel, servicing and operating conditions must follow that model’s current documentation. Final specifications and supply terms are confirmed in the quotation.
Research & education
Describe the laboratory or educational purpose and the information your institution needs to evaluate available products.
Model applications
Discuss product options for appropriate civilian model applications and request current model-specific information.
Supply & service scope
Clarify the equipment, accessories, documentation, warranty conditions and service arrangements included in the quotation.
Prepare your enquiry
Start with the details
that matter.
We assess options against your requirements. Availability, specifications and supporting documents are confirmed for the proposed configuration.
Explore our buyer resources →- Civilian application and intended use
- Delivery country and estimated quantity
- Preferred product category or model, if known
- Required product documentation and service scope
- Target delivery date and purchasing requirements
Common questions
Before you request a quotation.
Can you supply every model or configuration?
Availability and suitability depend on the request. Send your requirements and we will confirm which options can be offered.
When can we obtain detailed specifications?
Ask for current information for the exact model and configuration proposed. Figures from different models should not be combined into one specification.
What should our procurement team request?
Request the proposed model, included equipment, relevant product documents, warranty conditions, service arrangements and delivery terms.
Need specific certifications or supporting documents? Tell us what your procurement process requires. We will confirm their availability and applicability to the proposed product or project.
Start a conversation
Tell us what you need.
Share your application, delivery country, quantity or project scope, and intended timeline. We will review your requirements and confirm suitable options and quotation details.
A non-confidential requirements summary is sufficient for an initial enquiry.
